Schéma Zapalování motoru, cívky pro modely:

1 A40511075000 Main wiring harness
1 362 Kč
2 A40539031000 CDI control unit
6 230 Kč
3 A40539030000 Rubber support CDI
237 Kč
4 A40539006000 Ignition coil
1 579 Kč
5 0025060166S HH collar screw M6x16 TX30 SL
53 Kč
6 46239190000 Spark plug connector
347 Kč
7 A40039093012 Spark plug AR12C
113 Kč
8 A40539091000 Sealing boot
237 Kč
9 A40539004000 Stator
5 181 Kč
10 0025050166S HH Collar Screw M5x16 ISA30 SS
53 Kč
11 A40539005000 Rotor
3 777 Kč
12 50230029012 LOCKING RING VSK 12
45 Kč
13 49030021000 COLLAR NUT M12X1 R/S
194 Kč
14 0402040980 Needle roll.DIN5402 NRB 4X9.8
39 Kč
15 A40530002000 Ignition cover
1 598 Kč
16 0025060206 HH collar screw M6x20 TX30
46 Kč
17 0025060126 HH collar screw M6x12 TX30
46 Kč
18 58411098100 CONTACT WASHER M6 VSV-K6
62 Kč

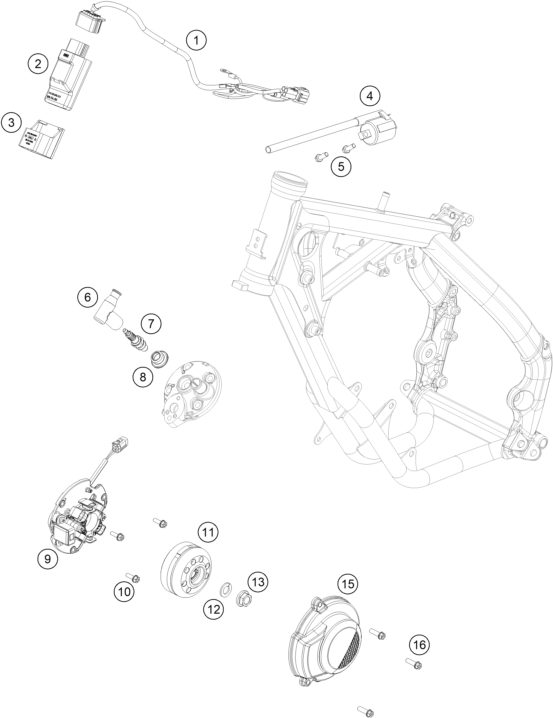

Náhled schématu IGNITION SYSTEM
