Schéma Zapalování motoru, cívky pro modely:

1 A53539030000 Rubber support CDI
316 Kč
2 A41039031000 CDI control unit
6 230 Kč
3 A40511075000 Main wiring harness
1 362 Kč
6 46239190000 Spark plug connector
347 Kč
7 A40039093010 Spark plug
113 Kč
8 A40539091000 Sealing boot
237 Kč
9 0025060166 HH collar screw M6x16 TX30
46 Kč
10 A40539006000 Ignition coil
1 579 Kč
11 50439013000 DISTANCE UNIT
288 Kč
12 A41039004000 Stator
5 181 Kč
13 A40539004010 Crankshaft pos. sens. holding
282 Kč
14 0912050163S Cap head screw DIN912 - M5x16
40 Kč
15 0012050253S Bolt DIN 6912 - M5x25 SS
40 Kč
16 A40539005000 Rotor
3 777 Kč
17 A41030002000 Ignition cover
1 598 Kč
18 0025060206 HH collar screw M6x20 TX30
46 Kč
19 50230029012 LOCKING RING VSK 12
45 Kč
20 49030021000 COLLAR NUT M12X1 R/S
194 Kč
21 78112920100 Hourmeter
1 678 Kč
22 0081035183 Ejot delta PT screw 35X18
46 Kč
23 0025060126 HH collar screw M6x12 TX30
46 Kč
24 58411098100 CONTACT WASHER M6 VSV-K6
62 Kč

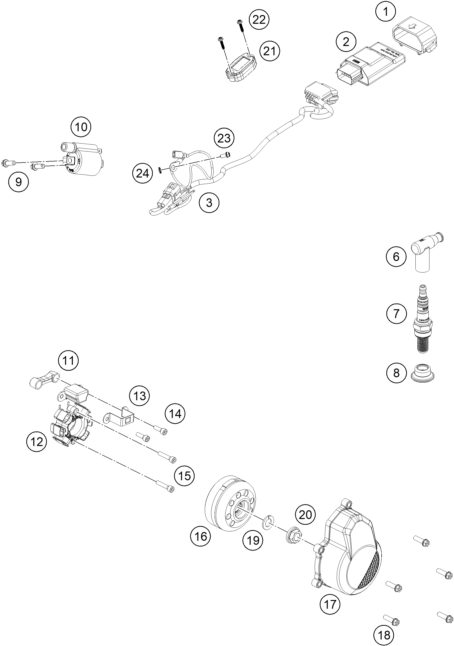

Náhled schématu IGNITION SYSTEM
