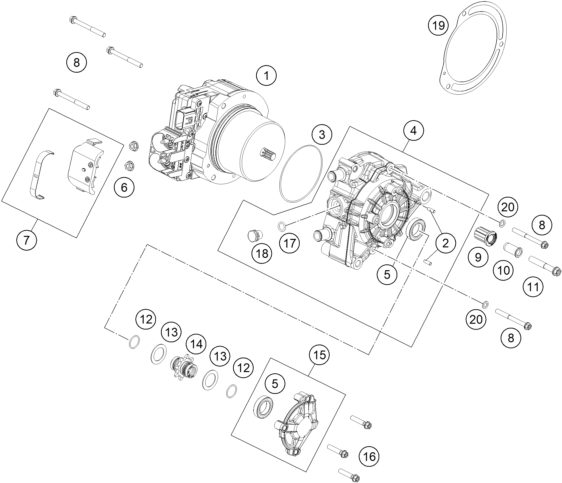

Schéma Blok motoru pro modely:

1 A20147000000 Electric motor
36 315 Kč
2 0402041180 Needle bearing NRB 4X11.8
39 Kč
3 07708902701 O-ring 89 x 2.7 FKM 70
82 Kč
4 A20147001033 Stator housing cmpl.
4 021 Kč
5 0625068040 Grooved ball bearing 61804-2RS
397 Kč
6 06923060007 Hex.nut w.flange DIN6923-M6-10
27 Kč
7 45445050010 Protection cap, engine connect
480 Kč
8 0025060606 HH collar screw M6x60 TX30
53 Kč
9 61005013000 RUBBER SILENCER SUPPORT 05
222 Kč
10 61005014000 Sleeve silencer support
194 Kč
11 0025080456S HH COLLAR SCREW M8X45 ISA40
89 Kč
12 0770017015 O-ring 17X1.5
33 Kč
13 45445021000 Stop disc
88 Kč
14 45445018018 Pinion shaft assy
663 Kč
15 45445040233 Adjustment bush bridge cmpl.
1 362 Kč
16 0025060306 HH collar screw M6x30 TX30
46 Kč
17 0770100020 o-ring 10.00x2.00 silicone
33 Kč
18 70045084000 BLEEDER VALVE M12X1,5
583 Kč
19 A20147001001 Flange seal
323 Kč
20 0603061001 CU-SEAL RING DIN7603-6X10X1
34 Kč
Náhled schématu ENGINE CASE
