Schéma Kyvka, příslušenství pro modely:

1 A67904030044C1 Swingarm 990 Duke R'25
27 614 Kč
2 50304040100 screw M10x1.25x50 WS10
150 Kč
3 58414030000 HH COLLAR NUT M10X1,25 WS=13
70 Kč
4 A63608022000 Brake line guide
261 Kč
5 0025050166 HH collar screw M5x16 TX30
46 Kč
6 0760253270 radial shaft seal 25x32x7
139 Kč
7 54804034000 Bucket f. shaft seal ring 03
239 Kč
8 0618222812 Needle bushing HK2212V 22/28/1
202 Kč
9 A63604032000 Bearing sleeve 17x22x38.7
301 Kč
10 54603036000 STOP DISK 22,2X31,7X1
67 Kč
11 A63604066000 Chain slider
712 Kč
12 46104066050 BUSH FOR CHAINSLIDER GUARD 02
76 Kč
13 0025050126S Hex collar screw M5x12 ISA30 S
53 Kč
14 A60704061100 Chain guard
0 Kč
15 69008021160 special screw M5x12
82 Kč
16 A67404150000 Splash protection
0 Kč
19 A63604030020 Shock absorber support bushing
301 Kč
20 A60704037000 Swingarm pivot
1 779 Kč
21 76504038000 Special screw M12x40 WS19
200 Kč
22 77204041000 Locking cap swingarm
107 Kč
23 A46004041000 Locking cap swingarm
92 Kč
99 A60704030010 Swingarm Rep.Kit 990 Duke #24
1 832 Kč

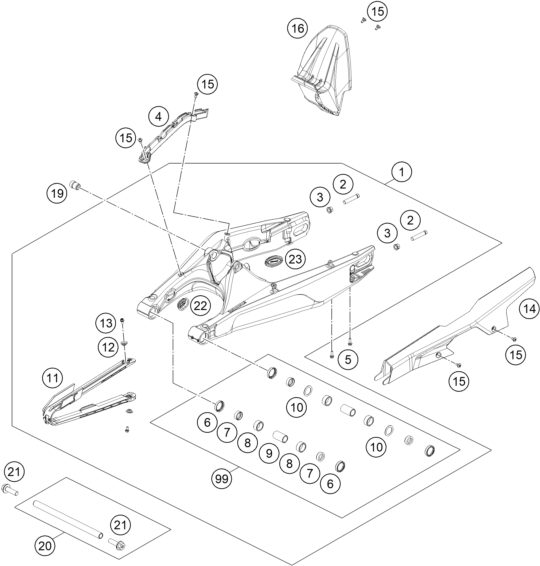

Náhled schématu SWING ARM
