Schéma Mazání motoru pro modely:

1 63530065000 Gearbox lubrication pipe cmpl.
0 Kč
2 C0770010010 o-ring 10.00x1.00 NBR70
0 Kč
4 C90038051000 Gasket with support sheet
0 Kč
5 C90038050000 oil-water-heater exchanger
0 Kč
6 C0000250602000S HH collar screw M6x20 TX30
0 Kč
7 C63538035000 Oil pipe
0 Kč
8 C63530086010 pressure plate
0 Kč
9 C0000190501200S INT. TORX FLAT HEAD M5X12 T25
0 Kč
10 C014580060126S Cylinder head bolt ISO 14580 M
0 Kč
11 C63638003000 Bearing bolt
0 Kč
12 C90038001022 oil pump idler wheel 22 teeth
0 Kč
13 C0799080000 Lock washer DIN 6799 - RS 8
0 Kč
14 C90038007010 Washer 10x16x0.5
0 Kč
15 C90038001224 Oil pump gear 24T
0 Kč
16 C90038008050 Oil pump cover
0 Kč
17 C90038009014 Eaton pump set 14 mm
0 Kč
18 C90038002000 Oil pump shaft
0 Kč
19 C0402041580 Needle roller 4x15.8 G2 NRB
0 Kč
20 C0402050980 needle roller DIN 5402 5x9.8
0 Kč
21 C0770120020 O-ring 12x2
0 Kč
22 C90038012000 Oil pump housing
0 Kč
23 C0770140200 O-ring 14x2
0 Kč
24 C0770020020 O-ring 20x2 VITON
0 Kč
25 C90038128000 Control piston
0 Kč
26 C90038026000 Oil compression spring
0 Kč
27 C90037073000 Shim
0 Kč
28 C90038010000 Eaton pump set 30 mm
0 Kč
30 C0000250602500 HH collar screw M6x25 ISA30
0 Kč
31 C90030086100 Oil sump gasket
0 Kč
33 C6353008500024 oil pan
0 Kč
34 C61238021300 Oil screen cpl.
0 Kč
37 0770125015 O-RING 12,5X1,5 NBR
0 Kč
38 0770170200 O-RING 17,00X2,00
0 Kč
40 C61338015200 Oil filter
0 Kč
41 C07700390261 O-RING 39,34X2,62
0 Kč
42 C90038041200 Oil filter cover
0 Kč
43 C0000250501600 HH collar screw M5x16 ISA30
0 Kč
44 C90030024000 Dowel
0 Kč
45 C0000250603500 HH collar screw M6x35 ISA30
0 Kč
46 C0000250603000 HH collar screw M6x30 ISA30
0 Kč
47 C0770060025 O-ring 6x2,5
0 Kč
48 C0000250801600S HH collar screw M8x16 TX40 SL
0 Kč
49 C0770070025 O-ring 7x2,5
0 Kč
99 C00050000068 Oil filter service kit
0 Kč

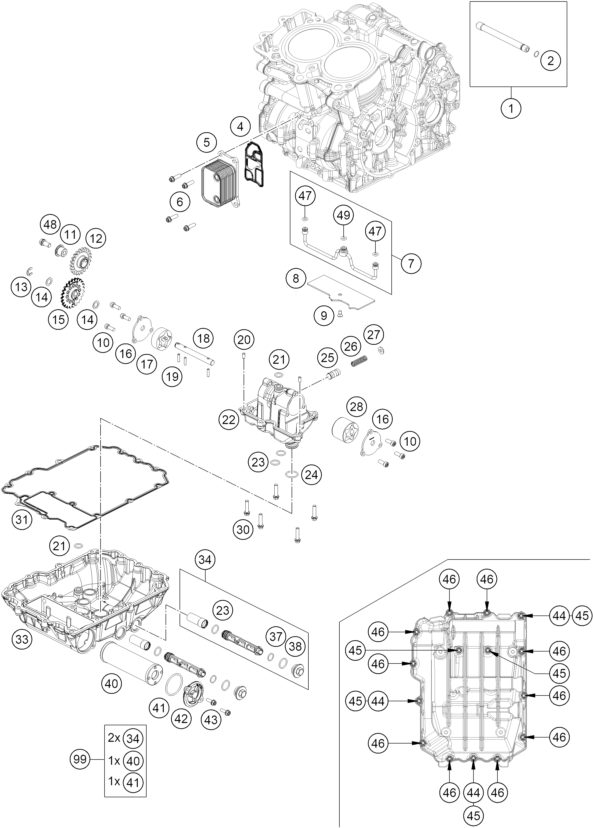

Náhled schématu LUBRICATING SYSTEM
