Schéma Rám, podsedlovka pro modely:

1 C90103001000C1 Frame 641 RA black
0 Kč
3 69008021080 clip nut M5
0 Kč
4 69008121160 Special screw M5x12
0 Kč
5 54603048100 clip nut M6
0 Kč
6 C90742041000 Damper ABS modulator
0 Kč
7 54603048200 RANGE CHANGE METAL NUT M5
0 Kč
8 C90707014000 Fuel tank role
0 Kč
9 C0000250601200S Hex collar screw M6x12 ISA30 s
0 Kč
10 C90703013000C1 Engine strut black
0 Kč
11 C0145790805000S CYL. SCREW DIN14579 M8X50 SS
0 Kč
12 C0000351006000S AH-COLLAR SCREW M10X60 ISA45
0 Kč
13 C90742046000 Bracket ABS line d7.5
0 Kč
14 C90706003060 Quick-lock coupling
0 Kč
15 C0000351006500S ISA screw, M10x65 ISA45
0 Kč
16 54310086100 SELF LOCKING NUT M10 CU WS=14
0 Kč
19 C90703034000 Cable guidance left
0 Kč
20 C90703034020 Fastening plug M8
0 Kč
21 C90703035000 Cable guidance right
0 Kč
22 C90705062000 silentbloc 20x15-M6x10-(1)
0 Kč
23 C0000351004000S ISA collar screw M10x40 ISA45
0 Kč
24 C0000351004500S ISA screw M10x45 ISA45
0 Kč
25 C90703039000C1 Front footpeg bracket, right
0 Kč
26 C90703038000C1 Front footpeg bracket left
0 Kč
27 C90703041000 FOOTREST FRONT R/S CPL. 05
0 Kč
28 C90703040000 FOOTREST FRONT L/S CPL. 05
0 Kč
29 C90703044000 footrest bolt, rear
0 Kč
30 0799060003 retaining washer DIN 6799 - 6
0 Kč
31 C90703042000 RETURN SPRING FOOTREST
0 Kč
32 C0000351008000S ISA collar screw M10x80 ISA45
0 Kč
33 C90703039001C1 Distance piece
0 Kč
34 0025050106S Hex coll. screw M5x10 ISA30 se
0 Kč
35 C90703038001C1 Roller
0 Kč
36 C90703096000 Front sprocket cover
0 Kč
37 64111059020 Cable holder, attachable
0 Kč
38 C90703088000 Locking cap frame
0 Kč
39 C90703092044 Set protection sticker frame
0 Kč

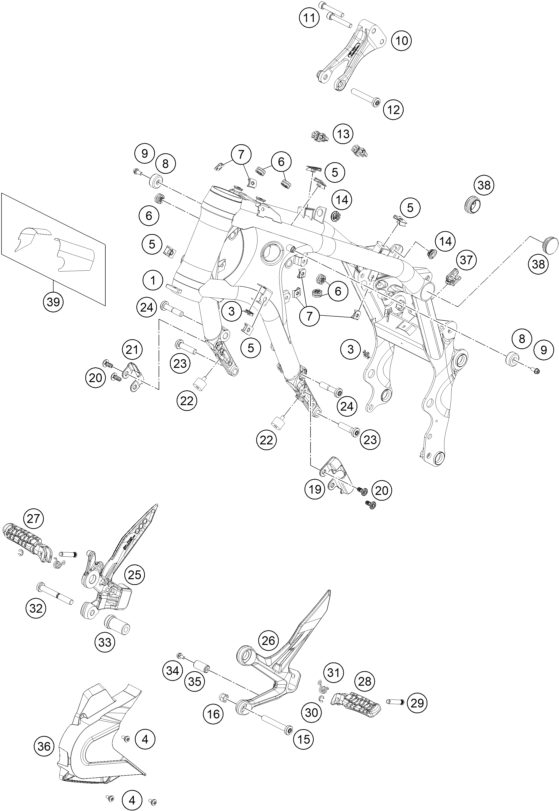

Náhled schématu FRAME
