Schéma Nádrž, sedlo, plasty pro modely:

1 C66007013000CB Fuel tank
0 Kč
2 64107080200 Fuel lever sensor
0 Kč
3 0912050203 AH SCREW DIN0912-M 5X20
0 Kč
4 59007017000 CLAMP YDNAC 10096F (9,6MM)
0 Kč
5 C90715019735 Hose 6x10 FKM/ECO L 735
0 Kč
6 C90711092000 CABLE TIE W. SOCKET D=6,5
0 Kč
7 54603048200 RANGE CHANGE METAL NUT M5
0 Kč
8 54603048300 RANGE CHANGE METAL NUT M6 INOX
0 Kč
9 C90742041000 Damper ABS modulator
0 Kč
10 C61342041100 Bund bushing 6,5x9x18x8,5
0 Kč
11 C0000250602000 HH collar screw M6x20 TX30
0 Kč
12 C90707080090 Gasket fuel level sensor
0 Kč
13 014579050166 Cap hd. screw ISO14579, M5x16-
0 Kč
14 C66007040000 Rider seat cpl.
0 Kč
15 C90706001021 Spaxer rubber airbox
0 Kč
16 C90707040041 Isolation pad
0 Kč
17 C0000250804000S Collar screw M8x40 ISA40 SS
0 Kč
18 0021080003 WASHER DIN9021-A 8,4
0 Kč
19 C90707046000 Rubber seat cowl pad
0 Kč
20 C90707049000 Bushing 8.4x12x21.5
0 Kč
21 C0900000601500S Special screw M6x15x5.5-8.8 MK
0 Kč
22 C66007047033 Passenger seat cpl.
0 Kč
23 C90712008000 Grip handle passenger
0 Kč
24 C0000350805000S AH-collar screw M8X50 ISA45
0 Kč
25 C90707012000 Tank Protection Set Metamoll
0 Kč
26 C90707013040 protectionfoil tank set
0 Kč

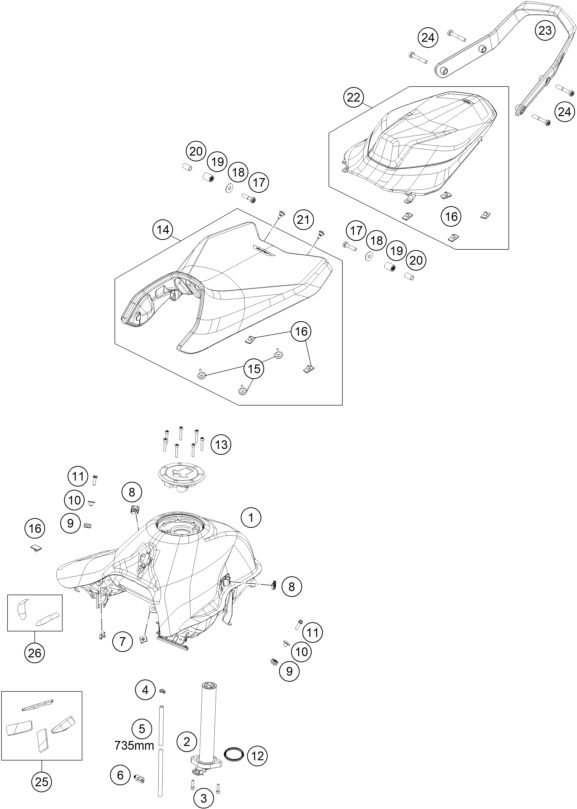

Náhled schématu TANK, SEAT
