Schéma Výfukový systém pro modely:

1 A60705083000 Silencer
12 303 Kč
2 61305069000 Bushing 8.5X11X29
194 Kč
3 61305068000 DAMPING RUBBER
222 Kč
4 A60705011000 Heat protection front
2 046 Kč
5 60405069000 Shape disc Alu
88 Kč
6 0019080506 COUN.-SUNK SCREW M8X50 ISA10.9
89 Kč
7 A60705090033C1 Heat protection preassembled b
2 401 Kč
8 27005011011 DAMPING ELEMENT SILICON
74 Kč
9 78105081010 SCREW TORX M5X10
45 Kč
10 54603048600 RANGE CHANGE METAL NUT M5 INOX
107 Kč
11 0780005406200 Seal ring, mica 50 mm
351 Kč
12 A46005016000 Tension spring L=62mm
119 Kč
13 A64005050033 Premuffler preass.
16 008 Kč
14 0025080356 HH collar screw M8x35 TX40
77 Kč
15 61705069000 Collar bushing 8.5x12.5x23.5x1
194 Kč
16 54305068100 damp. component silicone grey
162 Kč
17 A64005007000 Header
20 752 Kč
18 51010086100 self-locking nut M8 Cu
49 Kč
19 0310001807100 Clamp, Norma VPP 71
423 Kč
20 A64005005000 Exhaust gasket
310 Kč
21 63505015000 stud screw 835 M8x25 - 10.9
68 Kč
22 0035100249S HH collar screw M10x24 ISA45 S
139 Kč
23 A60741090000 Oxygen sensor
5 284 Kč
24 63541090000 O2 Sensor LSF 4
5 284 Kč
25 63541190100 Oxygen sensor
5 284 Kč
26 0000240804000 Hex collar screw M8x40 ISA40
77 Kč
27 54603048000 RANGE CHANGE METAL NUT M8
91 Kč
28 A64005050075 Premuffler bracket
405 Kč
29 A64005013000 Rubber silencer bracket
88 Kč

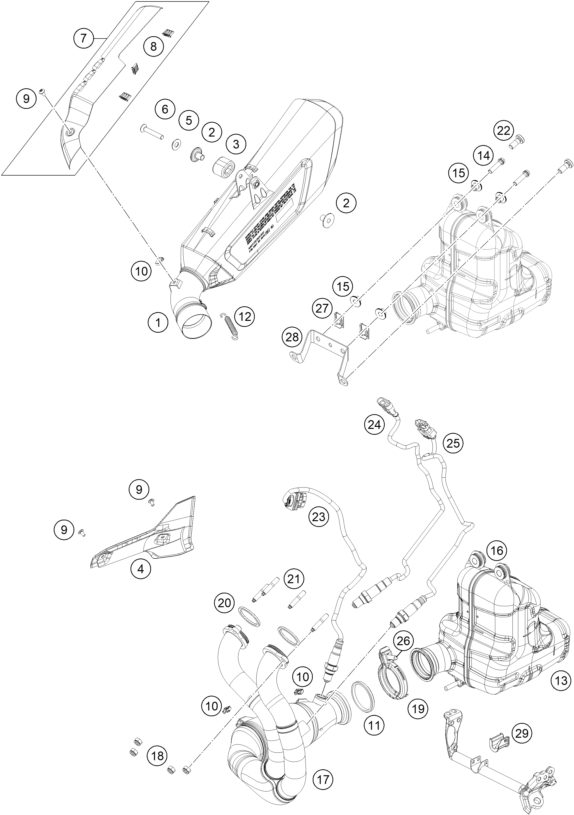

Náhled schématu EXHAUST SYSTEM
