Schéma Blok motoru pro modely:

1 A42030000244 Engine case cpl.
0 Kč
2 A42030025000 Clutch cover gasket, inner
0 Kč
4 75030085100 Retaining bracket crankshaft b
0 Kč
5 0019050106S hex lobe countersunc screw M5x
0 Kč
6 54630027000 DOWEL BUSHING 13,8X11X12
0 Kč
7 79230010000 Housing bush
0 Kč
8 54830027100 Dowel, 21x12
0 Kč
9 58038022000 CU-seal ring DIN7603-12X18X1.5
0 Kč
10 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5
0 Kč
11 0402040980 Needle roll.DIN5402 NRB 4X9.8
0 Kč
12 0025060506 HH collar screw M6x50 TX30
0 Kč
13 0025060256 HH collar screw M6x25 TX30
0 Kč
99 A42030099000 Gsket kit Engine MX 125
0 Kč

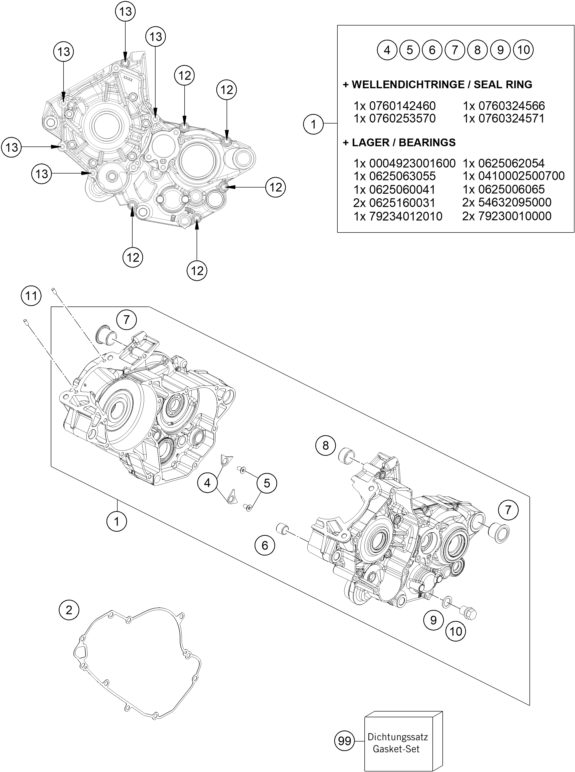

Náhled schématu ENGINE CASE
