Schéma Hlava motoru - zadní pro modely:

1 A60036152000C1 Valve cover rear
0 Kč
2 A62436099044 VALVE COVER GASKET SET
0 Kč
3 A60036053000 Valve cover seal
0 Kč
4 A60036075050 Spark plug shaft seal
0 Kč
6 77036054250 Sealing element
0 Kč
7 77336054150 VALVE COVER SCREW
0 Kč
8 A60036075000 Spark plug shaft inser
0 Kč
9 0770298178 O-RING 29,87X1,78 VITON
0 Kč
10 61236079000 CYLINDER HEAD SCREW 08
0 Kč
11 61236079050 WASHER 11,1X20X3 08
0 Kč
12 A60036044000 Intake sleeve
0 Kč
13 61336048000 HOSE CLAMP GEMI 75
0 Kč
14 014580060166S SHCS ISO 14580 M6x16 SL
0 Kč
15 60030063050 oil jet 50 M5
0 Kč
17 0025060106S Hex collar screw M6x10 ISA30 S
0 Kč
18 A60036055000 Lock washer
0 Kč
19 A60030036075 Cylinder head gasket
0 Kč
19 A60030036085 Cylinder head gasket
0 Kč
19 A60030036095 Cylinder head gasket
0 Kč
20 61236026001 VALVE GUIDE EXHAUST 08
0 Kč
21 61236025001 VALVE GIUDE INTAKE 6MM
0 Kč
22 A6003632004424 Rear cylinder head
0 Kč
23 0402050980 needle roller DIN 5402 5x9.8
0 Kč
24 0000150703800 Collar screw M7x1x38
0 Kč
25 0025060456 HH COLLAR SCREW M6X45 TX30
0 Kč
26 A60036085000 Sliding piece position sensor
0 Kč
27 58605083014 Oval head screw M5x14 TX25
0 Kč
28 0835080165 STUD M 8X16 10.9
0 Kč
29 0125060003 WASHER DIN0125-A 6,4
0 Kč
30 61230045000 CAP NUT M6 STAINLESS STEEL
0 Kč
32 0770090015 O-RING 9X1,5 NBR
0 Kč
33 A60036084100 Double acting actuator
0 Kč
34 0145830501800 Flat-head screw ISO 14583-M5x1
0 Kč
35 69005005100 EXHAUST PIPE FLANGE GASKET
0 Kč
36 77336056095 SCREW PLUG
0 Kč
38 59030296000 SCREW PLUG
0 Kč
39 0145830501800 Flat-head screw ISO 14583-M5x1
0 Kč
40 75036055000 valve mechanism cover screw
0 Kč
41 75036052010 decoupling element
0 Kč
42 59036006090 VENT SCREW M6X10 CPL.
0 Kč
43 0770050012 O-RING 5,0X1,2 NBR 70
0 Kč
45 61336074100 INSERT SPARK-PLUG SHAFT
0 Kč
46 0080060123 EJOT ALtracs 60x12 TX30
0 Kč
47 61236082150 connecting angle retaining pla
0 Kč
48 61236082200 Elbow fitting
0 Kč
49 0770120020 O-RING 12,00X2,00 NBR 70
0 Kč
50 0770160021 O-ring 16x2 Viton 75
0 Kč
51 A62430087000 Engine vent hose
0 Kč
52 60306082000 CLAMP YDNAC 10173 (19MM)
0 Kč

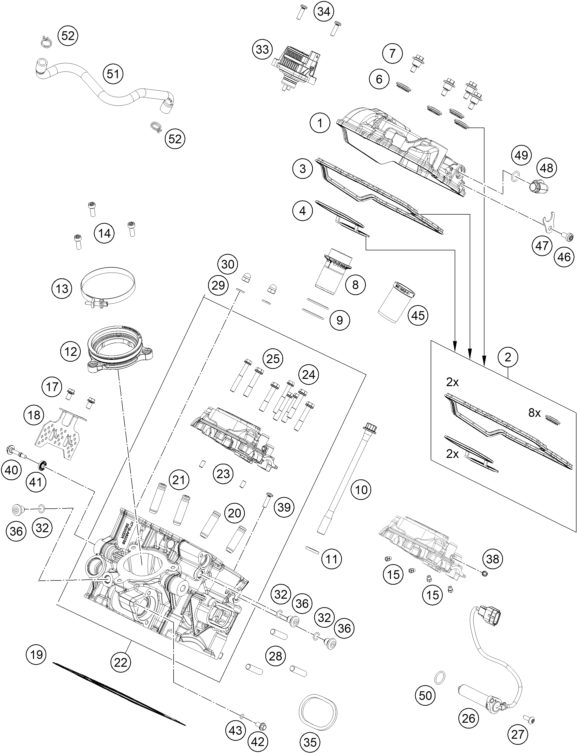

Náhled schématu CYLINDER HEAD REAR
