Schéma Výfukový systém pro modely:

1 A62405083000 Silencer
0 Kč
2 61305105005 Manifold gasket 60mm
0 Kč
3 61305058300 Exhaust clamp tube 60mm
0 Kč
4 61705008200 mainfold with integral insulat
0 Kč
5 61705011100C1 Heat protection complete, blac
0 Kč
6 78105181010 Torx screw M5x10 black
0 Kč
7 75041090200 LAMBDA SENSOR
0 Kč
8 51010086100 self-locking nut M8 Cu
0 Kč
9 69005005100 EXHAUST PIPE FLANGE GASKET
0 Kč
10 61705007100 Header front
0 Kč
11 61705058200 V-clamp D=70.1
0 Kč
12 61705005105 Header gasket 54 mm
0 Kč
13 0025080356S HH COLLAR SCREW M8X35 TX40
0 Kč
14 61705069000 Collar bushing 8.5x12.5x23.5x1
0 Kč
15 54305068100 damp. component silicone grey
0 Kč
16 61705012110C1 Front heat shield
0 Kč
17 54603048600 RANGE CHANGE METAL NUT M5 INOX
0 Kč
18 61705055000 Pre muffler mounting 2 complet
0 Kč
19 0025060166S HH collar screw M6x16 TX30 SL
0 Kč
20 0025080456S HH COLLAR SCREW M8X45 ISA40
0 Kč
21 60305069000 BUSHING
0 Kč
22 0926080003 STOP NUT DIN6926 M8 SS
0 Kč
23 0025080356 HH collar screw M8x35 TX40
0 Kč
24 61741070011C1 Retaining bracket actuator
0 Kč
25 61441070100 Exhaust flap controll motor
0 Kč
26 0025060306 HH collar screw M6x30 TX30
0 Kč
27 0025050106 HH collar screw M5x10 TX30
0 Kč
28 0025060356 HH collar screw M6x35 TX30
0 Kč
29 A62441065000 Bowden cable short
0 Kč
30 61705050200 Pre-Muffler
0 Kč
31 0340000950650 Plug clip
0 Kč
32 A62441066000 Bowden cable long
0 Kč
33 61741070020 Cable failure protection
0 Kč

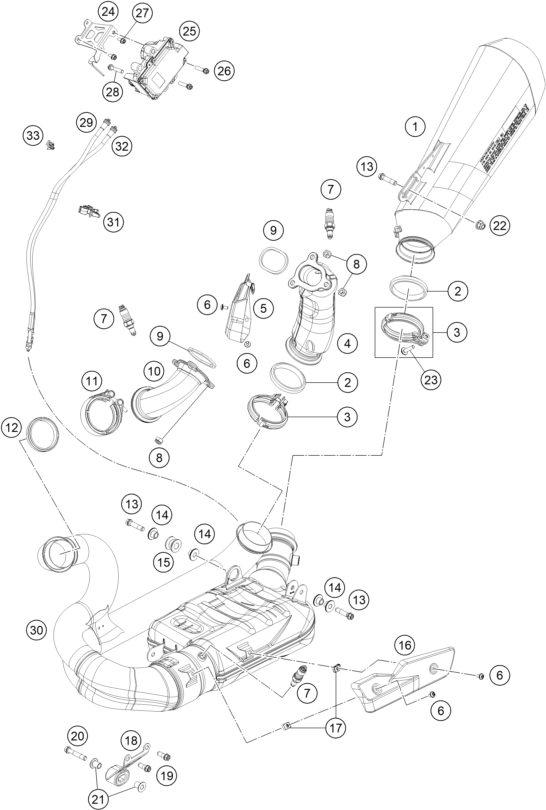

Náhled schématu EXHAUST SYSTEM
