Schéma Světla, příslušenství pro modely:

1 96214001000 Headlight
0 Kč
2 XY XY
0 Kč
3 XY XY
0 Kč
4 96314004010 position light holder right
0 Kč
5 96314004020 position light holder Left
0 Kč
6 96314002000 headlight adjuster plate
0 Kč
7 93014026000 Indicator front rh
0 Kč
8 93014025000 Indicator front lh
0 Kč
9 J06797100183 Toothed washer, M10
0 Kč
10 J125100009 Washer M10
0 Kč
11 J910001000800 Nut hex M10x1.25
0 Kč
12 96314010000 Headlight carrier front
0 Kč
14 J900000501602 screw tapping pan cross dia 4.
0 Kč
15 J900000601204 Roundhead screw, M6x12
0 Kč
16 J900000500900 Screw button head step M5x6.5
0 Kč
17 93014017000 Rubber bushing
0 Kč
18 93014018100 Collar head lamp holder MTG
0 Kč
19 J900000601900 AH oval head screw M6x19
0 Kč
20 91214025000 FLASHER L/S
0 Kč
21 91214026000 FLASHER R/S
0 Kč
22 96314045000 REFLECTOR REFLEX
0 Kč
23 J910000501100 nut hex flanged M5x0.8
0 Kč
24 28114047000 License plate lighting
0 Kč
25 XY XY
0 Kč
26 J025050126 HH-COLLAR SCREW M5X12
0 Kč
27 96314040000 Rear Light
0 Kč
28 96314043000 rubber support taillight
0 Kč
29 J934100006 Nut hex thin-M10x1.25
0 Kč
30 J981420133 SHEET MET.SCR. DIN 7981 4,2X13
0 Kč
32 94512082010 Reflector holder
0 Kč
33 J910000600505 NUT HEX THICK
0 Kč
34 94512082000 Side reflector
0 Kč
35 J125050005 WASHER M5
0 Kč
36 93014024100 bush
0 Kč
37 J900000605400 Aiming bolt (m6)
0 Kč
38 93014001010 Spring 1 x 8.5 x 30
0 Kč
39 J910000601200 Dome nut (m6x1)
0 Kč
40 93014024110 Screw M4X14
0 Kč
41 J690001210000 Washer plain
0 Kč
42 J690000710001 Washer plain
0 Kč
43 J125062006 washer plain-ID 6.2XOD 9.5XTHK
0 Kč
45 96314025010 GROMMET INDICATOR
0 Kč

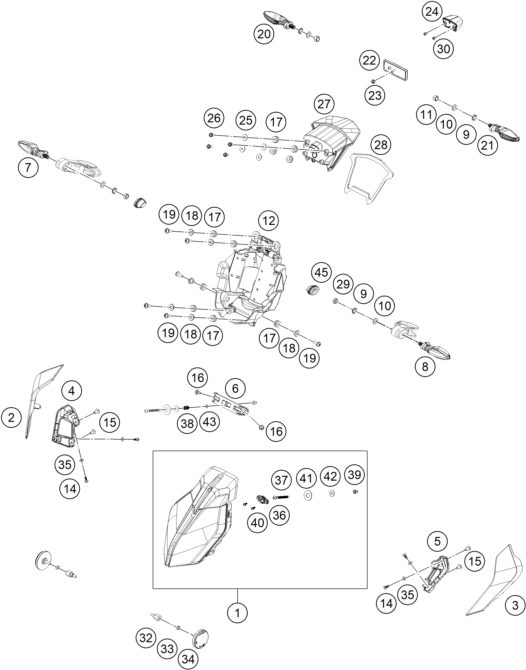

Náhled schématu LIGHTING SYSTEM
