Schéma Válec motoru pro modely:

1 A41030038000 Cylinder & Piston cpl.
0 Kč
2 47230006100 Cylinder head
0 Kč
3 A41030060000 Combustion chamber insert
0 Kč
4 0770540020 O-RING 54X2 VITON
0 Kč
5 0770800021 O-RING 80,00X2,00 VITON
0 Kč
6 58605083014 Oval head screw M5x14 TX25
0 Kč
7 4723700700033 Exhaust regulation cover rh
0 Kč
8 47237008000 Exhaust ctrl cover gasket rhs
0 Kč
9 58336020090 VACUUM CONNECTION M 6X1
0 Kč
10 0402040980 Needle roll.DIN5402 NRB 4X9.8
0 Kč
11 46030045000 flanged nut M8 WS10
0 Kč
12 47237006000 Exhaust ctrl cover gasket lhs
0 Kč
13 4723700500033 Exhaust regulation vover lh
0 Kč
14 014580060166 Cap head bold ISO 14580 M6x16
0 Kč
15 0913060203 THREAD PIN DIN0913-M 6X20
0 Kč
16 77336088106 COLLAR NUT M6X1 SW8
0 Kč
17 51005174000 Retaining cap
0 Kč
18 0835080256 STUD DIN0835-M 8X25 10.9
0 Kč
19 47230035020 Cylinder gasket
0 Kč
19 47230035025 Cylinder gasket
0 Kč
19 47230035040 Cylinder gasket
0 Kč
19 47230035050 Cylinder gasket
0 Kč
19 47230035075 Cylinder gasket
0 Kč
20 0603061001 CU-SEAL RING DIN7603-6X10X1
0 Kč
21 0025060106 HH collar screw M6x10 TX30
0 Kč
22 0025060256U0 HH collar screw M6x25
0 Kč
23 50335030001 PVC-HOSE 6X9
0 Kč
24 07702300251 O-ring 23.00X2.5 NBR 70 SH
0 Kč
99 00050000247 PISTON KIT GR.I 85 SX/TC
0 Kč
99 00050000248 PISTON KIT GR.II 85 SX/TC
0 Kč

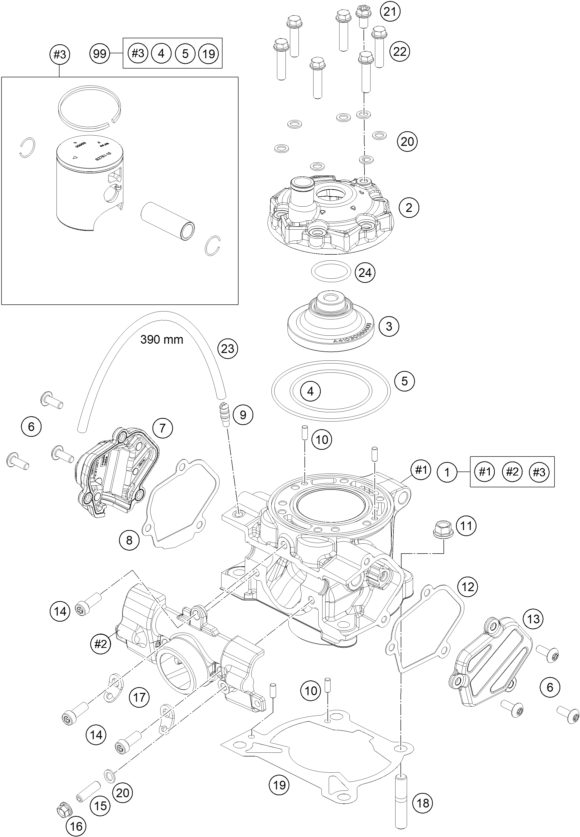

Náhled schématu CYLINDER
