Schéma Kabeláž pro modely:

1 C70111075000 Main wiring harness
0 Kč
2 C68011057000 Relay HFV6"
0 Kč
3 61711087050 Fuse Box
0 Kč
4 75011088010 FUSE 10A 07
0 Kč
5 C61111018100 TEMPERATURE SENSOR
0 Kč
6 C90711197000 Ground wire tank/frame
0 Kč
7 C90011096000 mass cable starter-frame
0 Kč
8 C70111097000 Mass cable starter-battery
0 Kč
9 C70111059000 Starter cable
0 Kč
10 C70111076000 Rear harness cpl.
0 Kč
11 C70111059050 Battery cable
0 Kč
12 C90711058010 Protection cap starter relay
0 Kč
13 C0073800600800 AH OVAL SCREW ISO 7380 M 6X8
0 Kč
14 C90711109030 FUSE 30 A
0 Kč
15 C66111058000 Starter relay
0 Kč
18 C70111060133 Horn cpl.
0 Kč
19 C0000240601000 HH collar screw M6X10 TX30
0 Kč
20 C60311034000 Voltage regulator
0 Kč
21 C0000250602000S HH collar screw M6x20 TX30
0 Kč
22 C90711093045 RUBBER CABLE TIE 45MM 03
0 Kč
23 C90011076140 CABLE TIE 140/2,5MM BLACK
0 Kč
23 C66011076250 Cable tie 250/4.8mm black
0 Kč
24 C90711092000 CABLE TIE W. SOCKET D=6,5
0 Kč
25 C0000250601200 HH collar screw M6x12 TX30
0 Kč
26 C0690000600100 Contact washer M6 VSV-K6
0 Kč
27 C0000250601600 HH collar screw M6x16 TX30
0 Kč
28 96314086000 UNIT CONNECTIVITY
0 Kč
29 C70114086010 CCU bracket
0 Kč
30 C0000250501200 HH collar screw M5x12 TX30
0 Kč
31 C96311041000 USB-C power supply
0 Kč

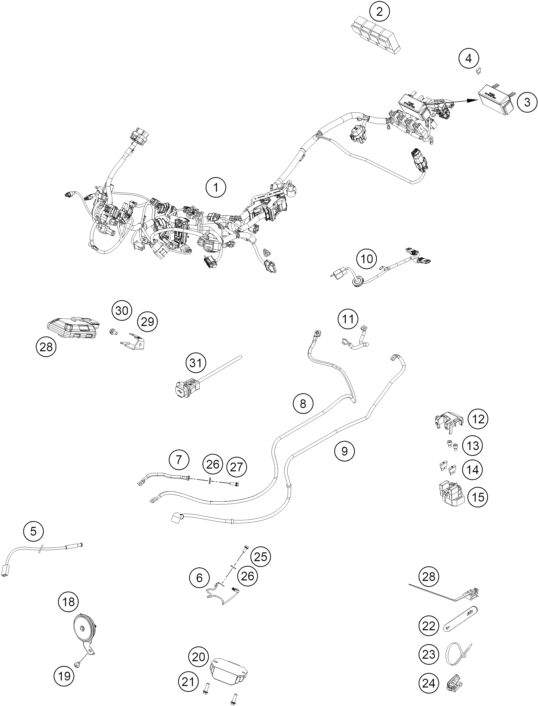

Náhled schématu WIRING HARNESS
