Schéma Hlava motoru pro modely:

1 A48036520144 Cylinder head cmpl.
0 Kč
2 79430036010 CYLINDER HEAD GASKET (DN95)
0 Kč
3 A48036052000C1 Valve cover
0 Kč
4 A48036053000 Valve cover seal
0 Kč
5 79136054000 Valve cover screw
0 Kč
6 79136054050 Rubber seal for collar screw
0 Kč
7 79536044000 rubber sleeve
0 Kč
8 0025060166S HH collar screw M6x16 TX30 SL
0 Kč
9 78136139100 Exhaust system flange
0 Kč
10 79536041000 Exhaust gasket
0 Kč
11 58030010200 SCREW IN NOZZLE M20X1,5
0 Kč
12 79536053150 valve cover gasket
0 Kč
14 60030063070 oil jet 70 M5
0 Kč
15 79536126001 valve guide outlet
0 Kč
16 79536125001 valve guide intake
0 Kč
17 78030044100 Cylinder Head Screw M10x1.25 L
0 Kč
18 77336089010 washer 19x10.5x2.5
0 Kč
19 0025060856 HH COLLAR SCREW M6X85 TX30
0 Kč
20 59030296000 SCREW PLUG
0 Kč
22 60036123000 Vacuum fitting M6
0 Kč
24 61036047000 Hose clamp GEMI 63mm 05
0 Kč
25 77236048000 Hose clip GEMI 58
0 Kč
27 79435047000 water temperature sensor
0 Kč
28 58431082300 CLAMP YDNAC 10173 (18MM)
0 Kč
29 A49030187000 engine breather hose
0 Kč
99 A48030097000 gasket kit cylinder MX 450
0 Kč

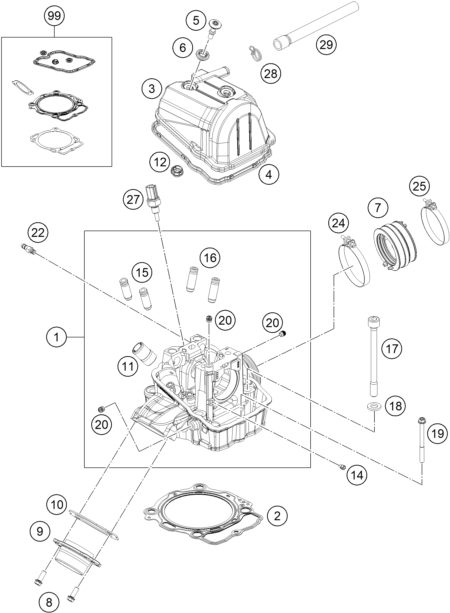

Náhled schématu CYLINDER HEAD
