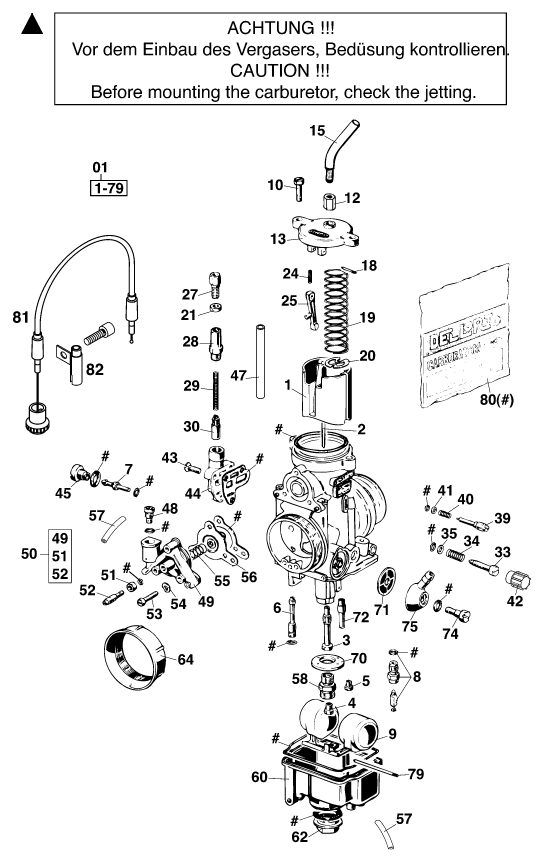

Karburátor, doplňky
1
57231135000
THROTTLE VALVE 50/1 DM=42MM
0 Kč
1
57631001044
CARBURETOR PHM 38 ND (100197)
0 Kč
2
49031134011
JET NEEDLE K11
185 Kč
2
49031134032
JET NEEDLE K32
267 Kč
3
57031521265
NEEDLE JET 265 AB
0 Kč
4
57031523135
MAIN JET 135
0 Kč
4
57031523140
MAIN JET 140
251 Kč
4
57031523142
MAIN JET 142
0 Kč
4
57031523145
MAIN JET 145
251 Kč
4
57031523148
MAIN JET 148
0 Kč
4
57031523150
MAIN JET 150
93 Kč
4
57031523155
MAIN JET 155
93 Kč
4
57031523158
MAIN JET 158
93 Kč
5
15131123045
JET 45
243 Kč
5
15131123050
JET 50
93 Kč
5
15131123052
JET 52
93 Kč
5
15131123055
JET 55
93 Kč
6
57031551045
STARTING JET 45
251 Kč
7
57031566033
ACCELERATING JET 33
0 Kč
8
57231120300
NEEDLE VALVE 300
778 Kč
9
57031509000
% FLOAT 8,5 GRAMME
0 Kč
9
58331509000
FLOAT
1 055 Kč
10
57031524000
HEXAGON NUT M 5X16
42 Kč
12
58031528000
SUPPORT BUSHING M6x0,75 WS=10
0 Kč
13
57231127000
CARBURETOR COVER
0 Kč
15
58431024000
TUBE F.CARBURETOR 400LC4-E '97
0 Kč
18
57031571000
* STUD 2,5X16
0 Kč
19
57031530000
SLIDING SPRING
45 Kč
20
57031532000
RETAINING PLATE
21 Kč
21
52031126000
HEXAGON NUT M 6X0,75 DIN0439
55 Kč
24
57031570000
SPRING
0 Kč
25
57031569000
PUMP LEVER
51 Kč
27
57031525000
ADJUSTMENT SCREW M6X0,75
172 Kč
28
57231155000
PLUG
82 Kč
29
57231153000
SPRING
28 Kč
30
57031549000
STARTING DEVICE
394 Kč
33
57031519000
ADJUSTMENT SCREW M5
98 Kč
34
52031116000
SPRING
47 Kč
35
57031573000
WASHER 5,1 X 8 X 0,8
0 Kč
39
57031517000
MIXTURE REGULAT.SCREW M7X0,75
104 Kč
40
57031515000
SPRING AIR ADJUST.SCREW
0 Kč
41
57031572000
WASHER 3,3 X 5,8 X 0,5
65 Kč
42
57031519100
KNURLED CAP PLASTIC
0 Kč
43
0964040143
OVAL HEAD SCREW DIN0964-M 4x14
25 Kč
44
57231150100
START.DEVICE BODY 4S
1 358 Kč
45
57031567000
JET HOLDER
0 Kč
47
58331029048
* SLIDE STOP L=48MM
0 Kč
48
57031565000
BLEEDER VALVE
0 Kč
50
57231160044
* PUMP HOUSING CPL.
0 Kč
53
0084040203
CYL.SCREW DIN0084-M 4X20 A
33 Kč
54
0137040003
* SPRING WASHER DIN0137-B 4
0 Kč
55
57031559000
* SPRING
0 Kč
56
57031557000
DIAPHRAGM
0 Kč
57
52031137001
PVC-HOSE 3X5MM
105 Kč
58
57031522000
MAIN JET HOLDER
0 Kč
60
57031511100
FLOAT CHAMBER WITH RUN OVER T.
0 Kč
62
57031514000
PLUG M12X1
0 Kč
64
57731040000
INTAKE TRUMPET FOR PHM 38 ND
194 Kč
70
50131174000
COVER
0 Kč
71
15131112000
FUEL FILTER
101 Kč
72
57031556000
REBOUND VALVE
0 Kč
74
0933060163
HH SCREW DIN0933-M 6X16
13 Kč
75
57031513000
HOSE CONNECTOR
0 Kč
79
57031508000
STUD 2 X 47
0 Kč
80
57731099000
GASKET SET PHM 38 ND
0 Kč
81
58302095200
CHOKE CABLE CPL. SX,SXC,SC'97
680 Kč
82
58302095251
SLEEVE FOR CHOKE CABLE
467 Kč
